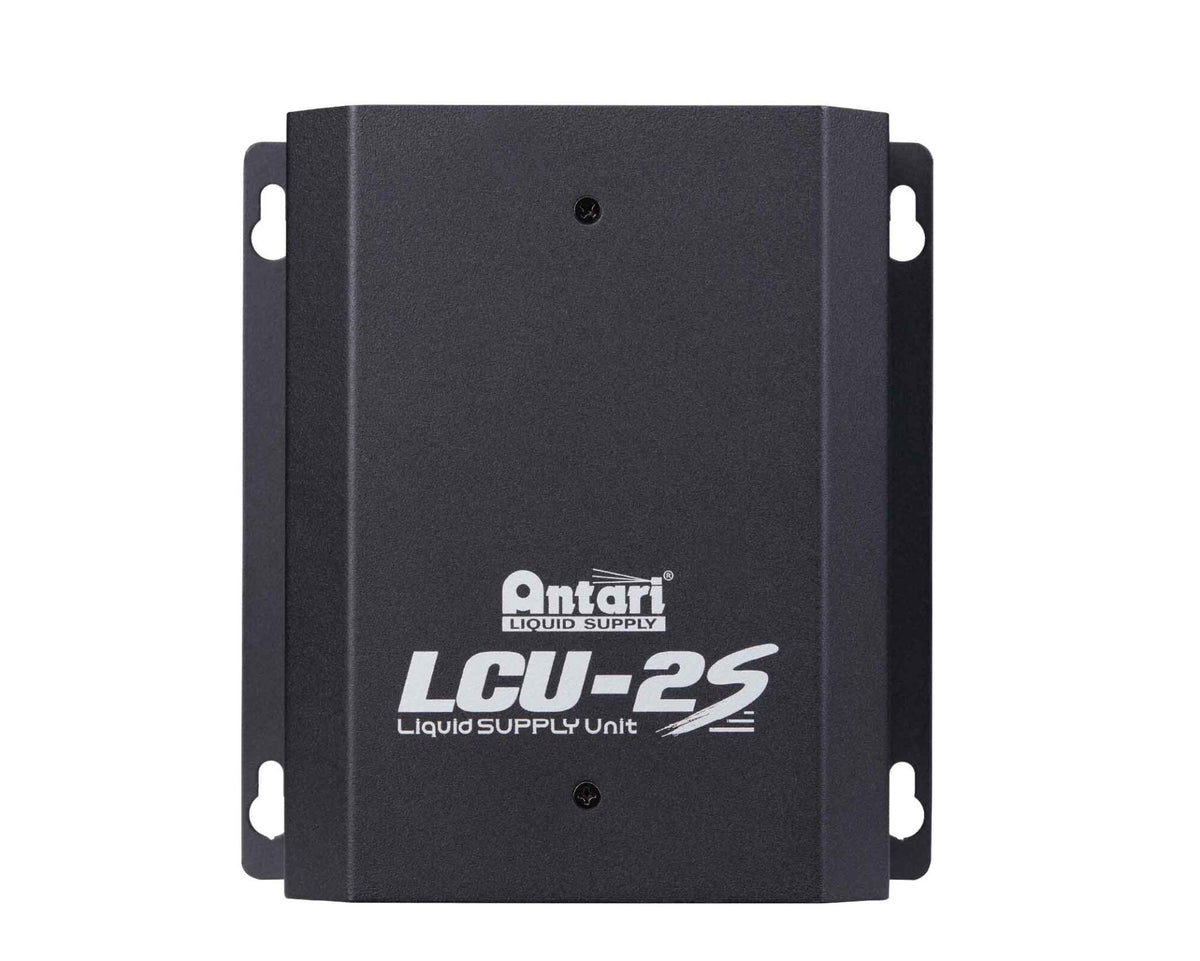

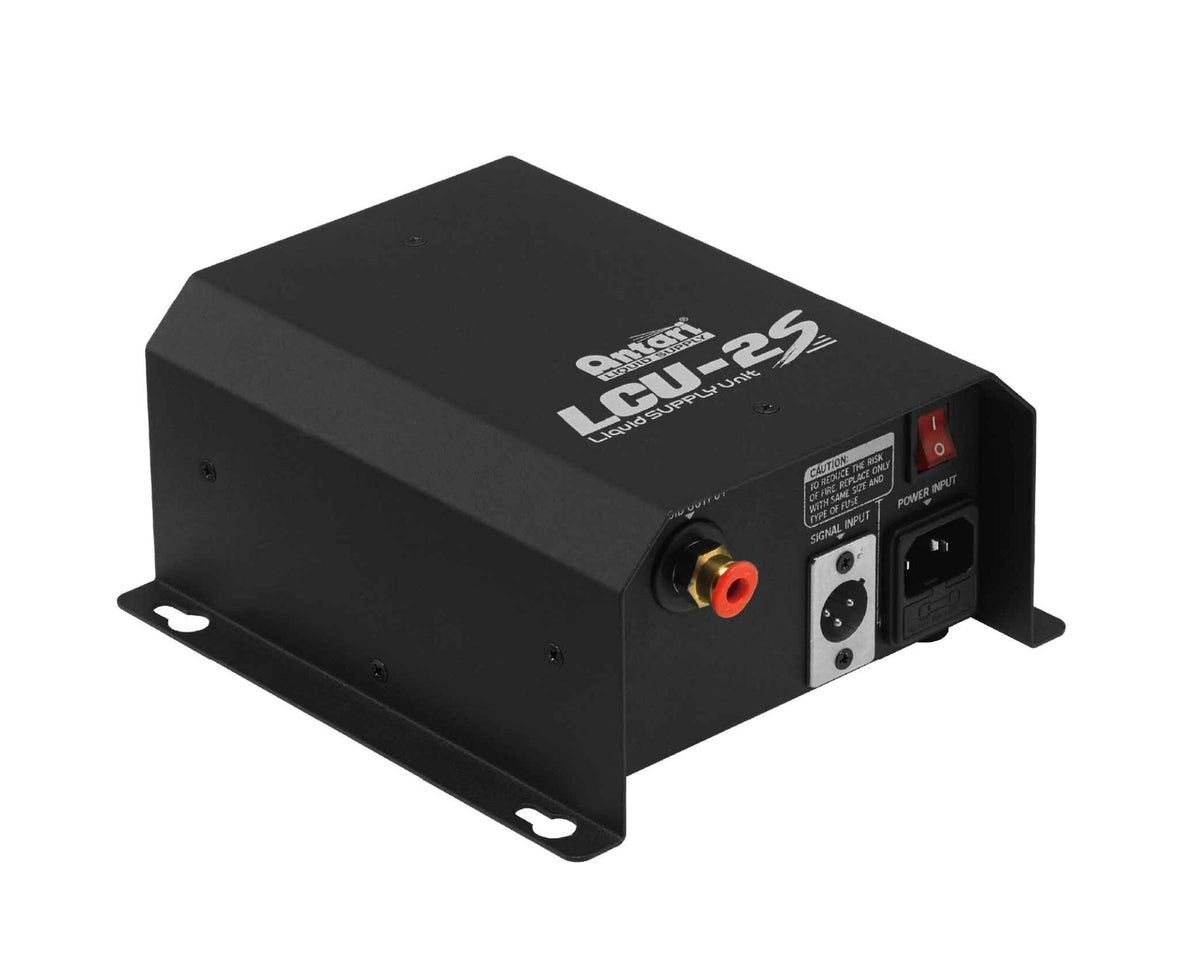

LCU-2S - Universal Liquid Control System - Fog & Snow

Overview
The Antari LCU-2S is a fluid distribution unit for Antari fog, fazer, and snow machines, succeeding the LCU-1S. It allows continuous operation of multiple machines on the same fluid type, up to 35 m horizontal and 12 m vertical.

Best for
Installations and touring rigs that feed fog, fazer, or snow fluid from a central supply to multiple machines.

Highlights

• Supply range 35 m horizontal, 12 m vertical
• 0.8 L tank unit
• Automatic operation with DMX control
• Works with Antari fog, fazer, and snow machines
• Includes 12 m and 10 m fluid tubes, adapters, and FLF-6 filter

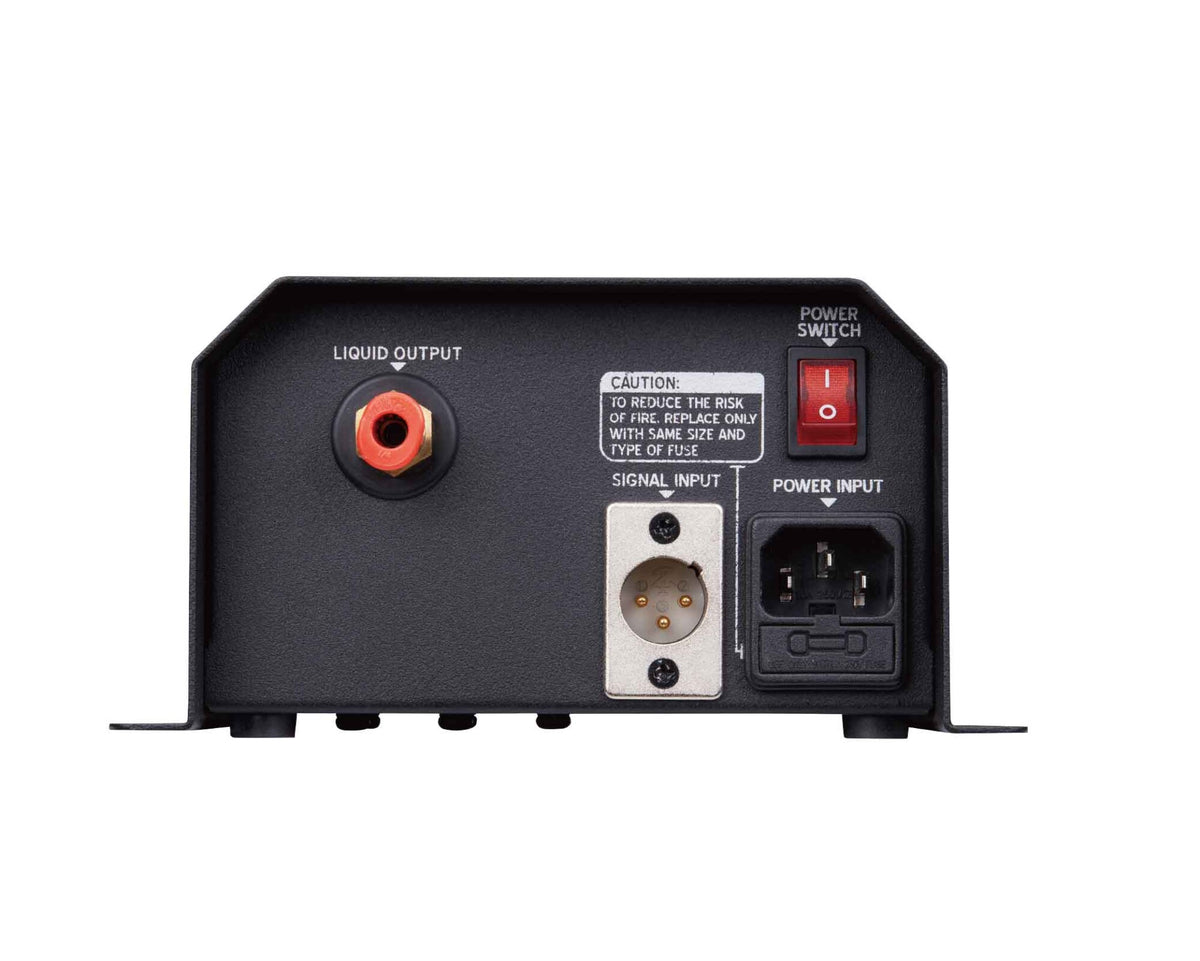

• IEC power and XLR 3-pin data connectors

Key Specs

• Part Number: LCU-2S
• Brand: Antari
• Power: 55 W
• Voltage: US AC 100-120 V, 0.5 A; EU AC 220-240 V, 0.5 A (50/60 Hz)
• Tank: 0.8 L (0.21 gal)
• Compatible fluid: Antari fluids only
• Operating temperature: 41-104 F (5-40 C)
• Supply unit: 7.05 x 6.62 x 3.31 in (179 x 168 x 84 mm), 4.40 lb (2.0 kg)
• Tank unit: 6.22 x 4.06 x 12.29 in (158 x 103 x 312 mm), 3.97 lb (1.8 kg)
