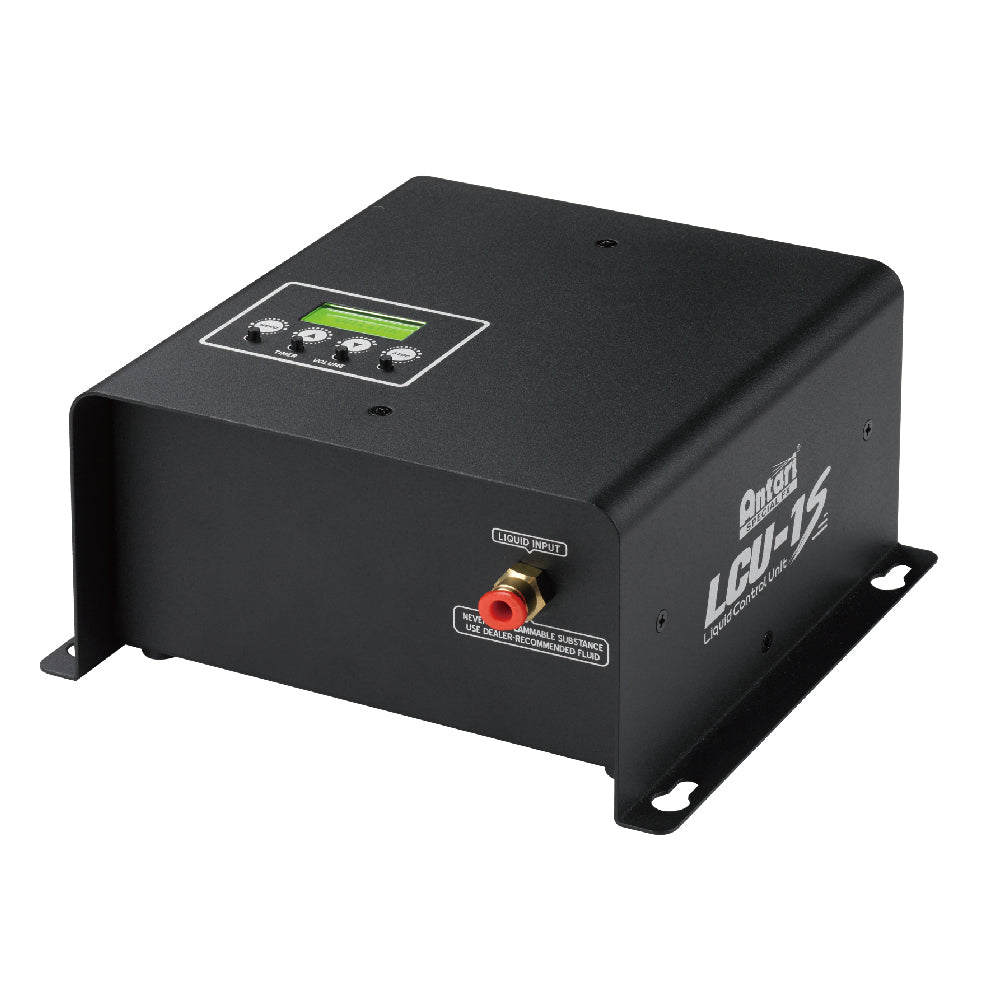

LCU-1S - Programmable Smart Fluid Distribution System - Fog & Snow

Overview

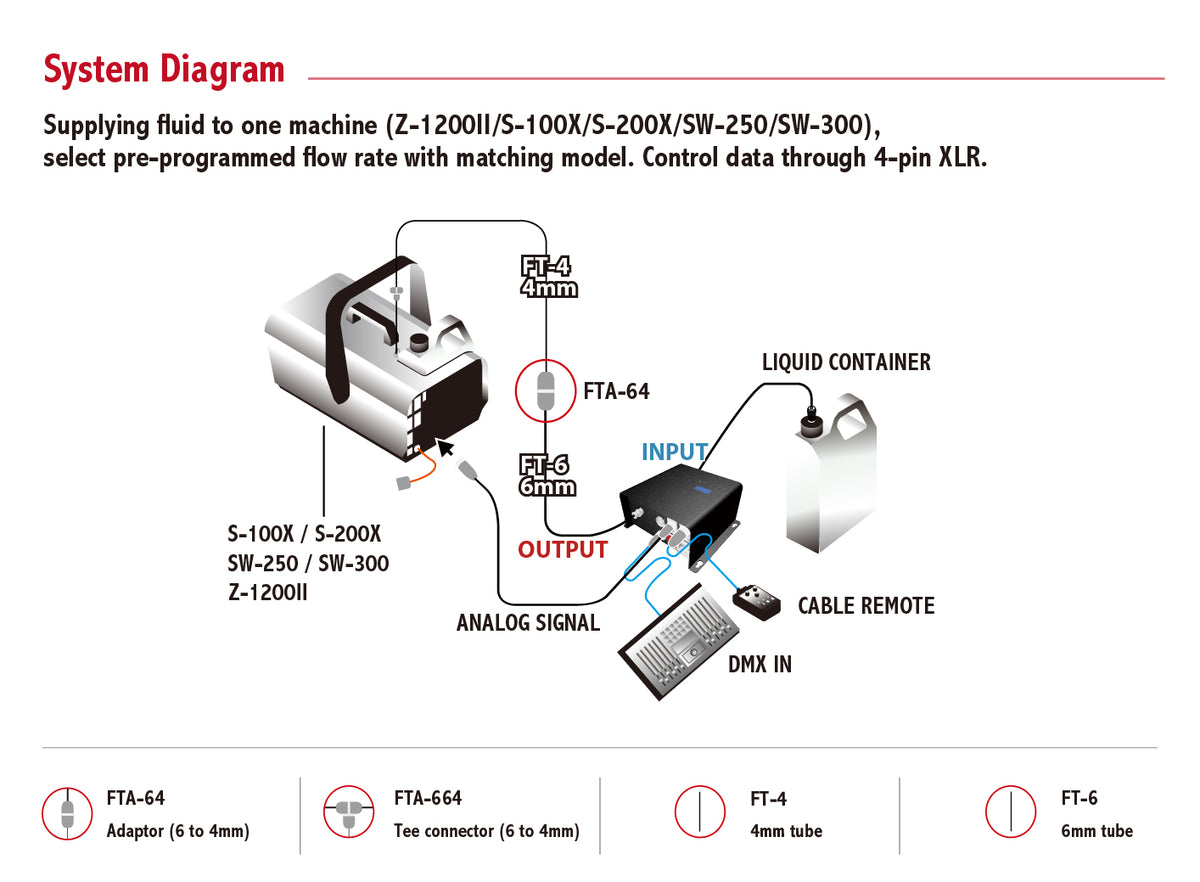

The Antari LCU-1S is a programmable smart liquid control unit that supplies fluid to up to 4 machines at once. It supports fog and snow machines over distances up to 35 m horizontal and 12 m vertical.

Best for
Installations and touring rigs that feed fog or snow fluid from a central supply to multiple machines.

Highlights

• Supplies up to 4 machines simultaneously
• Supply range 35 m horizontal, 12 m vertical
• Manual, timer, and DMX-512 control (1 channel)
• Designed for Z-1200II, S-100X, S-200X, and SW-250 machines

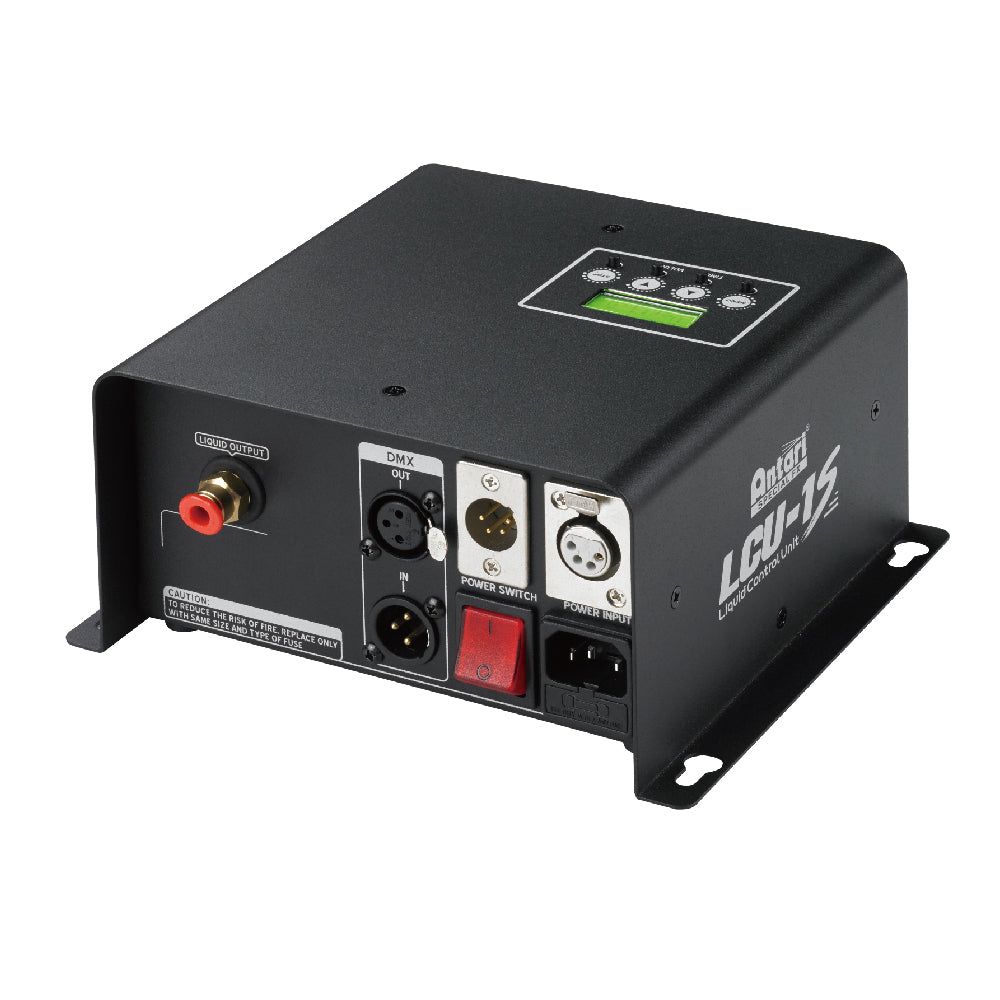

• XLR 3-pin DMX and XLR 4-pin remote connectors
• Includes data cable, 10 m fluid tube, FTA-64 adapter, and FLF-6 filter

Key Specs

• Part Number: LCU-1S
• Brand: Antari
• Power: 40 W
• Voltage: US AC 100-120 V, 0.5 A; EU AC 220-240 V, 0.5 A (50/60 Hz)
• Fluid consumption: 400 ml/min at 100% output
• Compatible fluid: Antari fluids
• DMX channels: 1
• Operating temperature: 41-104 F (5-40 C)
• Dimensions: 7.99 x 7.05 x 3.78 in (203 x 179 x 96 mm)
• Weight: 7.28 lb (3.3 kg)
