FG2102-08-BL - AMX MCP-108-BL Massio™ 8-Button ControlPad - Black

Overview

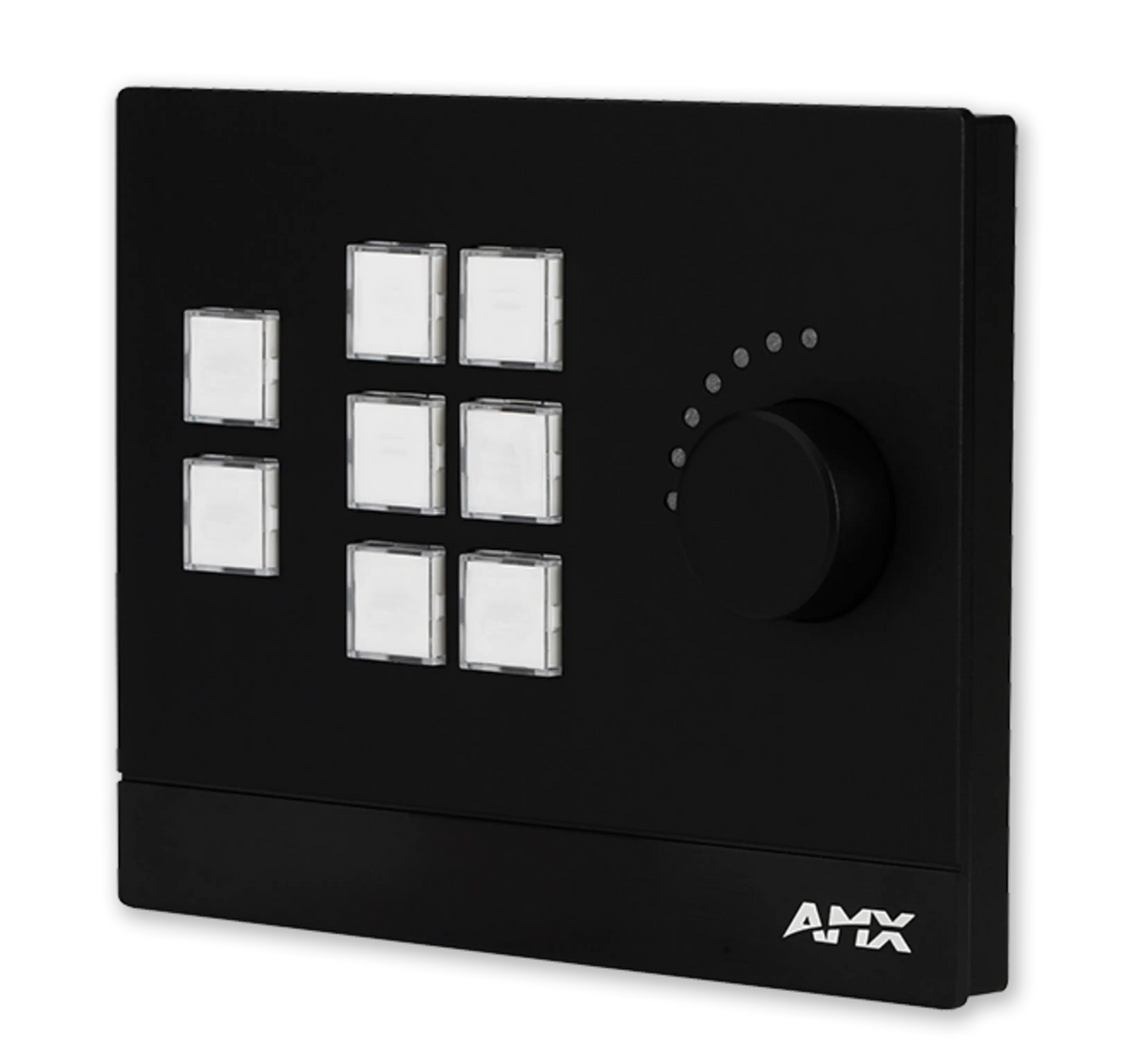

Massio 8-button ControlPad with knob: a wall-mounted keypad with a built-in NX-series AMX controller, for small rooms and huddle spaces.

Best for
Huddle spaces, small meeting rooms, classrooms

Highlights

• Keypad and controller combined in one unit
• Backlit buttons with customizable labels
• Built-in serial and IR ports for equipment control
• Web-based remote control and macro support
• NX-series security (IPv6, 802.1X, X.509, TLS/SSH)

Key Specs

• Part number: FG2102-08-BL
• Model: MCP-108-BL
• Mounting: standard 2-gang back box (US, UK or EU)
• Dimensions: 4.69 x 6 x 1 in (119 x 152.5 x 26 mm)
• Weight: 0.41 lb (0.19 kg)
• Power: PoE (802.3af), 5 W typical

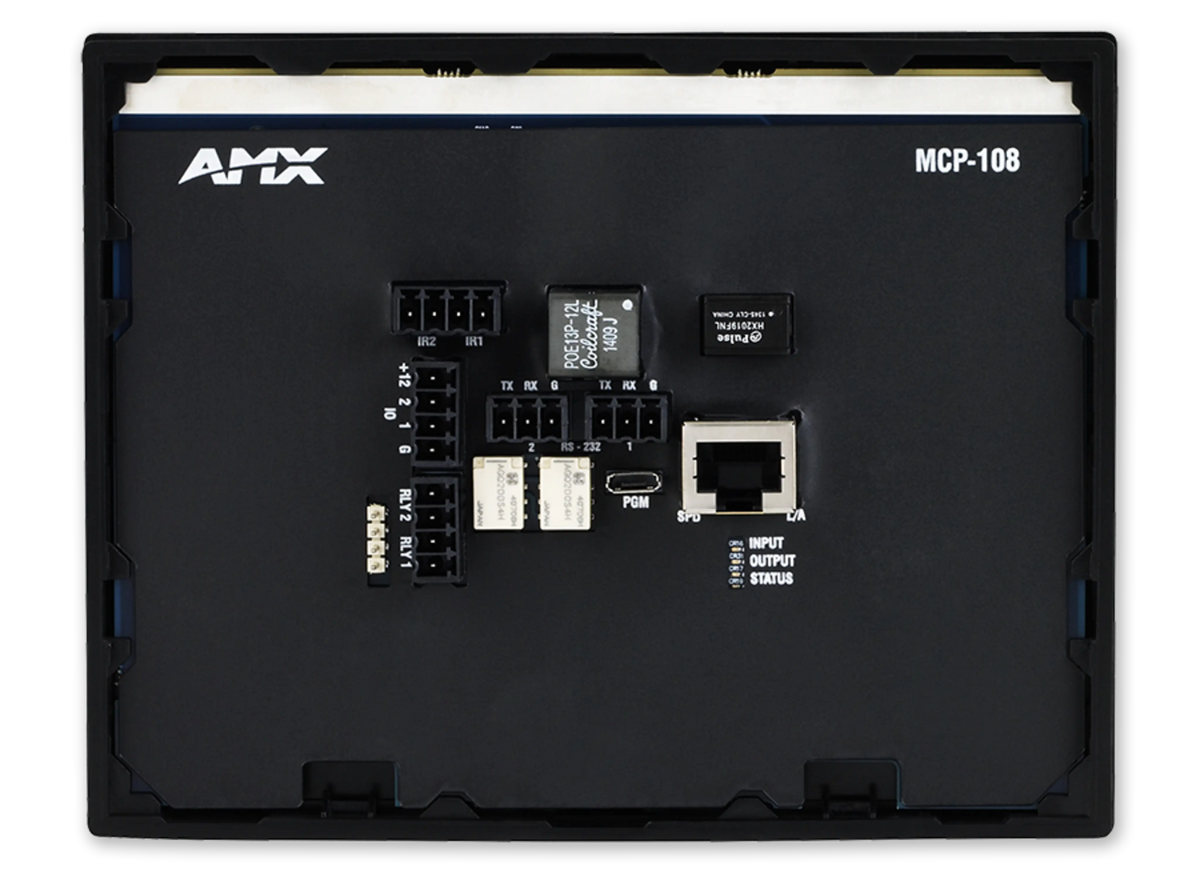

• RS-232 ports: 2
• IR/serial ports: 2
• Relays: 2 SPST, 1 A each
• I/O channels: 2 binary with voltage sensing
• Memory: 4 GB flash, 256 MB DDR
